Cov khoom tiv thaiv tshwj xeeb
Muaj ntau yam txaus ntshai nyob rau hauv cov txheej txheem ntawm kev tsim khoom, kev tshawb fawb tshawb fawb, kev qhia thiab lwm yam kev ua haujlwm, uas cuam tshuam rau tus kheej kev nyab xeeb thiab kev noj qab haus huv ntawm cov neeg ua haujlwm. Kev noj qab haus huv muab kev tiv thaiv zoo dua.
Qhov muag/Face Wash
SYSBEL tus tshiab nozzle taub hau colligate ib txwm aerators thiab tshuaj tsuag taub hau nrog qhov. Zero velocity point muab kev nplij siab ntau dua thiab kev tswj kom muaj txiaj ntsig zoo cheb cov khoom phom sij kom deb ntawm lub ntsej muag thiab ob lub qhov muag siv cov kwj deg aerated rau qhov muag ntxuav thiab nws tus kheej lub ntsej muag ntxuav dej kom zoo tshaj plaws. Cov khoom lag luam no tau ua tiav raws li ANSI Z358.1-2014 thiab AS 4775-2007, thiab tau raug sim thiab pom zoo los ntawm CSA.
• Cov qauv nozzle tshwj xeeb tau txais yuav. Tib qhov siab tuaj yeem tswj tau nyob rau hauv qee qhov dej siab, kom tsis txhob muaj kev cuam tshuam kev ua haujlwm los ntawm dej siab.
• Lub nozzle tuaj yeem siv los txau ob hom dej tib lub sijhawm, nrog qhov siab sib npaug. Cov dej fow yog khov kho thiab tsis sib xws vim yog lub built-in fow limiter.
• Lub aerator nrog lub npib nyiaj yog ib qho yooj yim tshem tawm thiab nruab, thiab yog li yooj yim los ntxuav thiab tswj.
• Cov plua plav pov thawj tuaj yeem tiv thaiv lub taub hau kom tsis txhob muaj plua plav hauv huab cua. Thaum pib ntxuav qhov muag, lub npog pov thawj cov plua plav yuav qhib tau hauv qab dej fow.
• Cov txiv ntseej tooj liab yog tsim nyob rau hauv 304SS nozzle puag thiab txuas nrog lub horn luj tshib, thiab nws lub zog txaus kom tso cai rov qab tshem tawm thiab teeb tsa thiab ua kom lub neej ntev dua.
• Lub nozzle yog ua los ntawm AES engineering yas uas yog superior rau ABS engineering yas, thiab muaj cov yam ntxwv zoo ntawm huab cua tsis kam, siab rigidity, corrosion kuj, UV tsis kam, thiab lwm yam.
• Lub ntsiab fttings thiab lwm yam khoom siv yog ua los ntawm 304 stainless hlau thiab siv tau rau cov chaw ua haujlwm tsis zoo.
• Cov yas daj daj yog siv los ua kom yooj yim rau kev soj ntsuam thiab kev txheeb xyuas.
• Lub connector ceev yog nruab nrog ib tug built-in flter los tiv thaiv cov khib nyiab los yog impurities los ntawm fowing mus rau hauv lub nozzle, thiaj li tsis txhob muaj kev puas tsuaj rau ob lub qhov muag. Tsis tas li ntawd, lub connector yog ib qho yooj yim rau kev khiav lag luam, uas yog yooj yim rau tu thiab txij nkawm nyob rau tib lub sij hawm.
• Lub qhov muag / ntsej muag lub ntsej muag ua tau raws li ANSI Z358.1-2014 thiab AS 4775-2007, thiab tau raug sim thiab pom zoo los ntawm CSA.

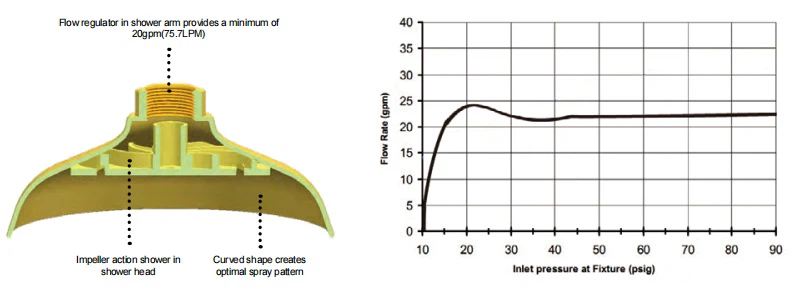

Da dej taub hau
SYSBEL 's kev nyab xeeb da dej muab cov qauv dej conical thiab maj mam xa cov dej loj kom paub txog kev ua kom tiav tsis muaj paug tsis raug mob rau ntawm daim tawv nqaij. Nws ua kom qhov ceev tshaj plaws, zoo tshaj plaws tshem tawm cov kab mob thaum muaj xwm txheej ceev. Cov khoom siv da dej ua tau raws li qhov chaw muag khoom ntawm ANSI Z358.1-2014 thiab pom zoo los ntawm CSA.
CEEB TOOM:
Spinkler lub taub hau nta kev khiav dej num (dhau dej tsawg kawg nkaus ntawm 20 GPM (75.7LPM) ntawm 30 PSI (2.0 bar)) hauv cov kav dej da dej, uas tsis tsuas yog xa cov kua dej txaus thiab ruaj khov, tab sis txuag dej thiab raws li kev pab cov neeg siv kom decontaminate zoo dua.
QHOV TSEEB CEEB TOOM
Kev sib xyaw ua ke
1. Valve tshuab ua haujlwm nyob rau hauv ib thib ob lossis tsawg dua; nws nyob twj ywm qhib kom txog thaum kaw manually.(Tshooj 4.2, 5.2, 6.1.4, 6.2).
2.Txuas mus rau lub kaw lus muaj peev xwm muab cov fushing fuid txaus thaum tag nrho cov khoom raug kho ib txhij.(Tshooj 4.5.5, 7.4.4).
3.Qhov siab ntawm fushing fuid kem qauv yuav tsum nyob nruab nrab ntawm 82 "(208.3cm) thiab 96" (243.8cm) saum toj no foor.(Tshooj 4.1.3, 4.5.4).
4.Kev xa dej yuav tsum txaus los muab tsawg kawg yog 20GPM (75.7LPM) rau 15 mimutes.(section 4.1.2,4.5.5).
5.Valve actuator yuav tsum nyob tsis ntau tshaj 175.3cm (69 ") saum toj no foor.(section 4.2).
6. Txoj kab uas hla yuav tsum yog yam tsawg kawg nkaus ntawm 50.8cm (20 ") ntawm 152.4cm (60") saum toj no.(section 4.1.4).
7.Qhov nruab nrab ntawm cov qauv fushing fuid yuav tsum muaj tsawg kawg yog 16 "(40.6cm) los ntawm kev cuam tshuam.(Section4.1.4,4.5.4).
8.Dej fow pattren yuav tsum nyob nruab nrab ntawm 33 "(83.8cm) thiab 53" (134.6cm) los ntawm theem uas tus neeg siv sawv thiab 6" (15.3cm) yam tsawg kawg nkaus ntawm phab ntsa lossis ze tshaj qhov thaiv.(Tshooj 5.4.4, 6.4. 4).
9.Xa tsawg kawg yog 3.0 nkas loos (11.4liters) dej ib feeb rau 15-feeb (Tshooj 6.1.6,6.4.5).
10.Tsim los ntawm cov ntaub ntawv uas yuav tsis corrode nyob rau hauv lub xub ntiag ntawm fushing fuid (Tshooj 7.1.1, 7.1.2, 7.1.3).
11.Nyob ntawm 10 vib nas this lossis 55 ko taw los ntawm cov kab mob sib kis lossis cov khoom siv phom sij. Nrhiav nyob rau tib theem uas muaj kev phom sij thiab tsis muaj kev cuam tshuam.(Tshooj 7.4.2, B5).
12.Tiv thaiv lub taub hau lub taub hau los ntawm cov pa paug, cov plua plav npog yuav tsum tau muab tshem tawm los ntawm dej fow tam sim ntawd (Section 5.1.3,6.1.3).
13.Muab fushing fuid rau ob lub qhov muag thiab lub ntsej muag ib txhij ntawm qhov nrawm qis txaus yam tsis muaj kev raug mob ntawm daim tawv nqaij (Tshooj 5.1.1,6.1.1).
ANSI kev lees paub ntawm kev ua raws cai | 1. Cov dej xa los ntawm chav tsev ua ke yuav tsum yog tepid (60-100℉/16-38 degree) (Tshooj 4.5.6,5.4.6,6.4.6,B6) |
| 4. Kev cob qhia Qhia txhua tus neeg ua haujlwm uas tej zaum yuav raug cov khoom phom sij hauv qhov chaw thiab siv cov khoom siv thaum muaj xwm txheej ceev.(Nqe 7.5.4) |
|
2. 15-flush yuav tsum tau feeb chav tsev ua ke yuav tsum muaj tsawg kawg yog 3.0gpm(11.4lpm) dej rau 15 feeb (Tshooj 7.4.5,B6) |
| 5. Kev ua haujlwm txhua lub limtiam & Kev tshuaj xyuas txhua xyoo Ua kom muaj kev sib xyaw ua ke tsawg kawg ib lub lim tiam thiab tshuaj xyuas txhua xyoo rau kev ua raws li cov cai ntawm ANSI-Z358.1 (Appendix B2)a |
| |
3. Kev txheeb xyuas Nyob rau hauv ib cheeb tsam uas qhia Nrog rau qhov pom pom tau zoo heev, thaj tsam ib puag ncig ntawm fxtures yuav tsum tau teeb pom kev zoo. (Nqe 7.4.3) |
| 6. Xav kom txuas a flushing fluid khoom ntawm qhov ntws siab ntawm 210kPa (30psi) (Appendix B2) |
|
