The Fire Safety Storage Cabinet Of EN Standard
The Fire Safety Storage Cabinet Of EN Standard
The Fire Safety Storage Cabinet Of EN Standard
The Fire Safety Storage Cabinet Of EN Standard
90-Minute EN Flammable Safety Cabinet high quality
90-Minute EN Flammable Safety Cabinet price
90-Minute EN Flammable Safety Cabinet high quality
90-Minute EN Flammable Safety Cabinet price
90-feeb EN Flammable Safety Txee
Nyob rau hauv qhov hnyav tshaj plaws EN1361-1 kev ntsuas hluav taws kub, tom qab 90 feeb ntawm kev kub hnyiab ntawm qhov kub ntawm 1006Ȣ, qhov siab tshaj plaws ntawm 15 qhov ntsuas kub ntsuas hauv lub txee yog qis dua li cov qauv yuav tsum tau ua, ua tau raws li EU tus qauv Ntau yam qauv thiab kev xeem ntawm EN14470-1: 2004.
90-feeb kev nyab xeeb txee Cov ntsiab lus tso saib
|
Damper Thaum qhov kub ntawm ambient mus txog 50 degree, lub built- nyob rau hauv fuse yuav raug txiav, thiab qhib lub qhov rooj yuav raug kaw los tiv thaiv cov ntsiab lus ntawm lub txee. |
|
|
|

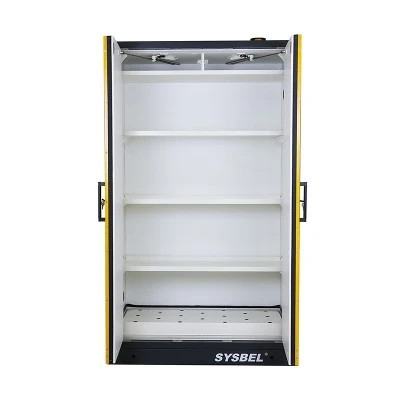

Adjustable Laminate Lub load-cov kabmob muaj peev xwm ntawm lub laminate yog 75KG, thiab qhov siab ntawm flange yog 30mm, uas tuaj yeem tiv thaiv cov thawv me me los ntawm kev sib tsoo. |
|
Leakage Tank nyob hauv qab Cov xau hauv lub txee txais tuaj yeem tiv thaiv cov khoom ntawm lub qhov ntxig los ntawm kev ntub dej hauv qhov to. |
|
|
|
Independent Cylinder Lock Muaj lub tog raj kheej kheej kheej ntawm txhua lub qhov rooj, thiab lub qhov rooj txee tuaj yeem qhib lossis kaw manually thaum siv ib txwm. |
|

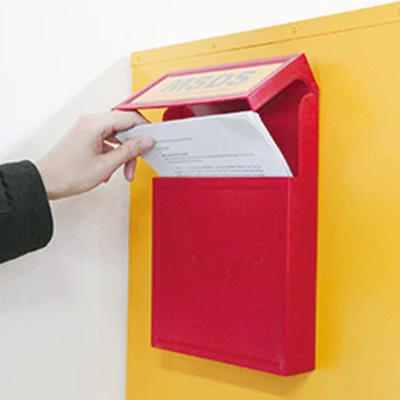

MSDS Document Box MSDS cov ntaub ntawv lub thawv yog nruab raws li tus qauv siv los tswj cov ntaub ntawv tshuaj. |
|
|
|

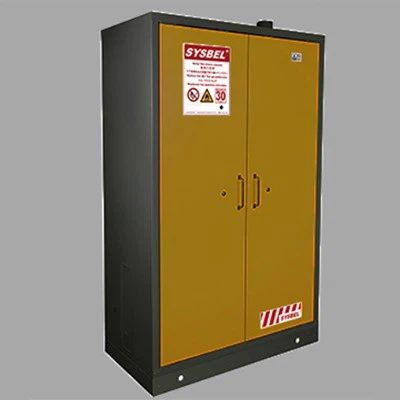

Reflective Label Nyob rau hauv cov ntaub ntawv ntawm cov pa taws hnyav thiab hluav taws xob tsis ua haujlwm, txoj hauj lwm ntawm lub txee tuaj yeem raug kaw sai sai los ntawm lub teeb pom kev zoo. |
|
Kev ruaj ntseg cia txee |
||||||||||||
|
Hluav taws |
Hom qhov rooj |
Xim |
Daim ntawv pov thawj |
Ext dimension |
Ntim |
Txuj |
Load bearing ntawm laminate (Kg) |
Dej tank |
Qhov hluav taws xob txuas |
Khaws ib leeg |
Ntim |
Qauv |
|
30 |
DoubleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
204×116×62.5 |
218×123×74 |
3 |
75 |
37 |
100 |
33 |
45/170 |
SIB 830450 |
|
60 |
SingleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
204×60×62.5 |
218×67×74 |
3 |
75 |
18.5 |
100 |
16.5 |
23/87 |
SE 860230 |
|
90 |
SingleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
204×60×62.5 |
218×67×74 |
3 |
75 |
18.5 |
100 |
16.5 |
23/87 |
TIAB SA 490230 |
|
90 |
DoubleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
204×90×62.5 |
218×97×74 |
3 |
75 |
30 |
100 |
27 |
30/114 |
TIAB SA 490300 |
|
90 |
DoubleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
204×116×62.5 |
218×123×74 |
3 |
75 |
37 |
100 |
33 |
45/170 |
TIAB SA 890450 |
|
Txwj Laug Undercounter |
||||||||||||
|
90 |
SingleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
61.5×56×52 |
75.5×63×63.5 |
1 |
75 |
11 |
75 |
9.5 |
10/38 |
TIAB SA 490100 |
|
90 |
SingleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
75×60×52 |
89×67×63.5 |
1 |
75 |
12.5 |
75 |
11 |
12/45 |
TIAB SA 490120 |
|
90 |
DoubleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
61.5×86×52 |
75.5×93×63.5 |
1 |
75 |
19 |
75 |
17 |
17/64 |
TIAB SA 490170 |
|
90 |
DoubleDoor/Self-kaw |
Daj |
TS EN 14470-1 |
63×110×59 |
77×117×70.5 |
1 |
75 |
32 |
75 |
28.5 |
19/72 |
TIAB SA 490190 |
|
Txav Log |
||||||||||||
|
Lub npe |
Chaw thau khoom muaj peev xwm |
Adjustable Txee |
Qauv |
Kev piav qhia |
||||||||
|
Lub log txav |
600 kg |
SE490300, SE830450, SE890450 |
wb 005 |
Yooj yim rau lub txee txav mus rau sab hauv tsev thiab tuaj yeem dhau los ntawm lub qhov rooj ntawm chav tsev |
||||||||
* Cov lus qhia xaiv: Cov xim ntawm cov khoom siv no yog xim daj, xiav, dawb, thiab lwm yam. Tsuas yog cov xim ntawm lub txee qhov rooj sib txawv. Cov kab daj SKU tau pom hauv cov duab saum toj no. Rau cov xim xiav, thov ntxiv "-B" tom qab SKU hauv cov lus saum toj no. Dawb series Thov ntxiv "-W" tom qab SKU hauv cov lus saum toj no.
90-feeb kev ruaj ntseg txee 'Nce thiab qhov zoo
1. Lub txee yog ua los ntawm siab - lub zog steel phaj. Qhov saum npoo ntawm lub txee lub cev yog electrostatically txau nrog txiv kab ntxwv - stripe molding hmoov, uas yog yooj yim los ntxuav, khawb-resistant, cuam tshuam-resistant thiab ruaj. Multi- txheej freproof gypsum board rwb thaiv tsev yog siv nyob rau hauv lub txee compartment kom ua tiav lub hom phiaj ntawm fre tiv thaiv.

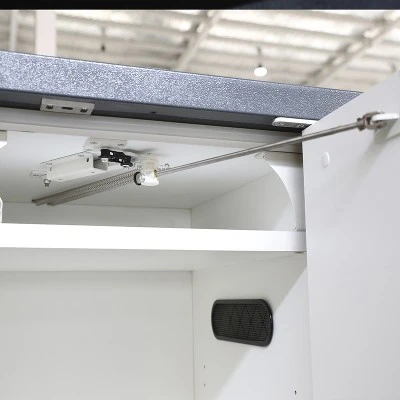

2. Hauv kev siv ib txwm, lub qhov rooj semi- tsis siv neeg tuaj yeem qhib lossis kaw; Yog tias muaj qhov tshwm sim, qhov kub nce mus txog 122 ° F (50 degree), qhov ua tau - nyob rau hauv fuse kev twb kev txuas system ua haujlwm, thiab lub qhov rooj qhib yuav raug kaw los tiv thaiv cov khoom hauv txee. Lub qhov rooj txee muaj lub damping ntsia hlau los kho qhov loj ntawm lub qhov rooj quab yuam ntawm qhov hloov.
3. Lub baffe phaj ntawm qhov cua qhov chaw cia li kaw ntawm 158℃F (70 degree) nyob rau hauv ib puag ncig dawb. Lub tshuab cua tshuab tuaj yeem txuas nrog cov yeeb nkab tso pa lossis lub tshuab cua flter.
4. Thaum tshwm sim, cov cua sov tshwj xeeb - cov ntaub ntawv rhiab rau hauv lub qhov rooj pob qij txha thiab tag nrho cov pob qij txha yuav cia li nthuav dav thiab ua rau lub qhov khoob los xyuas kom meej tias lub txee sab hauv yog kaw.
5. Txhua lub qhov rooj muaj qhov sib cais cylindrical xauv kom zoo tiv thaiv kev siv tsis raug cai. Lub qhov rooj yog affxed nrog cov ntawv ceeb toom tsis zoo hauv ntau hom lus. Nyob rau hauv qhov kev tshwm sim ntawm fre los yog lub hwj chim tsis ua hauj lwm, nws yog heev conspicuous nyob rau hauv lub flashlight.
6. Lub detachable hauv qab to taub zawj yog nruab nrog daim ntawv qhia ntawm peb sab, uas yog siv ua ke nrog cov perforated inserts kom zoo ntes cov kua overfowing ntawm lub txee. Lub thawv yog muab tso rau ntawm qhov perforated inserts kom tsis txhob raug soaked nyob rau hauv qab to taub zawj.
7. Nws yog confgured 3 standard adjustable steel laminates, nrog ib tug adjustable spacing ntawm 32mm rau txhua lub sij hawm, lub load peev xwm ntawm lub laminate yog 75KG. Lub turnup qhov siab ntawm lub laminate yog 30mm, uas tiv thaiv lub thawv me me los ntawm kev swb.
8. Lub hauv qab ntawm lub txee yog muab nrog adjustable leveling taw, uas muaj peev xwm sib npaug lub txee txawm nyob rau hauv uneven chaw.
9. Nws yog nruab nrog electrostatic grounding conductive chaw nres nkoj los pab txhawb kev sib txuas ntawm static grounding conductors.

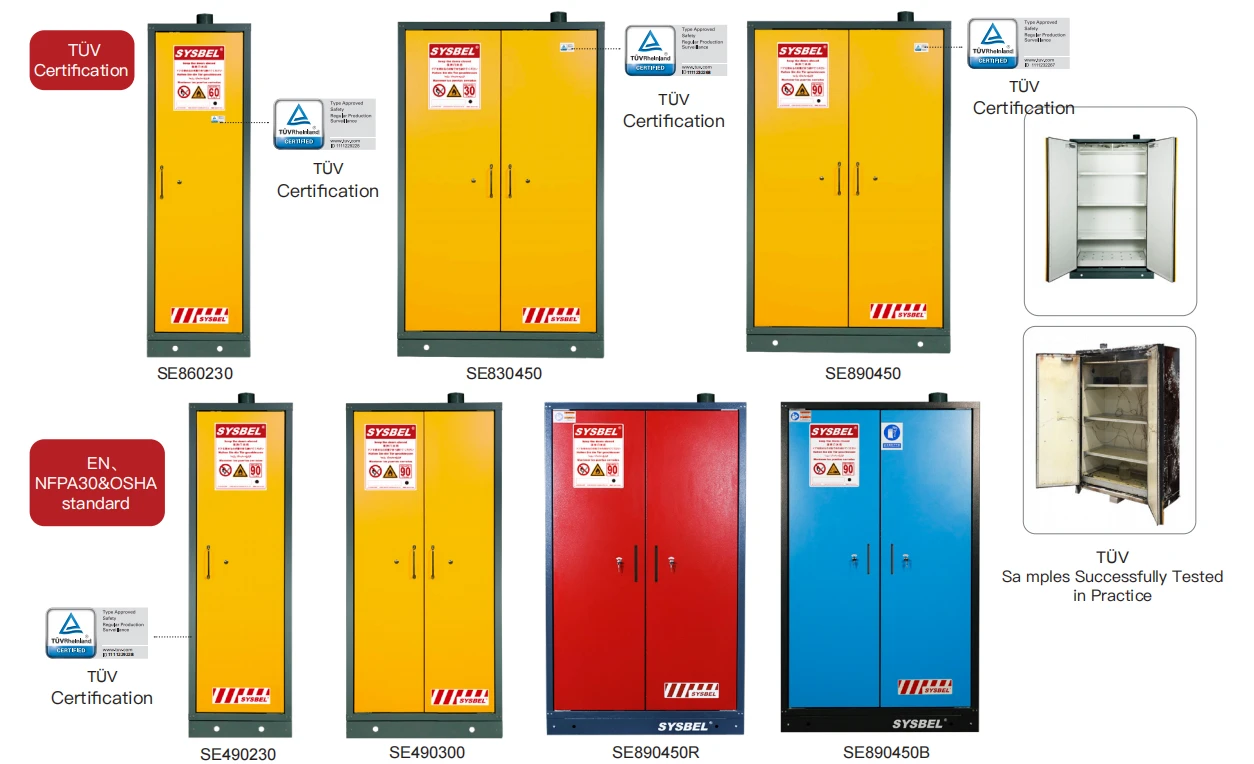

10. Lub txee ruaj ntseg ua raws li EN 14470-1 thiab ua raws li NFPA 30 thiab OSHA cov cai. Ntawm lawv, SE830450 dhau TÜV ywj siab dawb kuaj thiab tau txais TÜV ntawv pov thawj.
TUV certified yog dab tsi?
TÜV yog lub teb chaws Yelemees cov khoom lag luam loj tshaj plaws kev nyab xeeb thiab cov ntawv pov thawj zoo, thiab tseem yog lub cev tshuaj ntsuam xyuas tau lees paub los ntawm tsoomfwv German, nrog rau 145-xyoo lub koob npe nrov hauv lub teb chaws Yelemees thiab Europe. Raws li lub ntiaj teb ua tus muab kev pabcuam kev sim thev naus laus zis thiab kev pabcuam ntawv pov thawj, Rhein Group muaj kev pabcuam thoob ntiaj teb. Txij li thaum nws tsim nyob rau hauv 1872, Rhein Group yeej ib txwm tau cog lus rau cov teeb meem tshwm sim los ntawm kev sib cuam tshuam ntawm tib neeg, ib puag ncig thiab technology thiab muab cov kev daws teeb meem sib xws.
Tau ntau xyoo lawm, TÜV tau yeej qhov kev ntseeg siab ntawm cov neeg suav tsis txheeb thiab nyiam lub koob npe nrov thoob plaws ntiaj teb, uas txhais tau hais tias cov khoom tau dhau los ntawm kev soj ntsuam ntawm cov chaw nruab nrab, thiab lawv cov kev nyab xeeb thiab kev ua tau zoo yog kev ntseeg siab. Cov khoom lag luam tau lees paub los ntawm TÜV txhais tau tias nws qhov kev ua tau zoo yog txhim khu kev qha thiab tuaj yeem txo cov khoom muaj nqis ntawm cov neeg siv khoom; tib lub sijhawm, nws txhais tau tias cov khoom siv los ntawm cov neeg siv khoom tuaj yeem ua tau raws li cov qauv hauv zos.
Cim npe nrov: 90-feeb EN Flammable Safety Txee, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, nqe, yuav, kev muag khoom
